Woraus besteht die gebogene Anbaupergola?

Die Unopiù Solaire Anbaupergola gebogen besteht aus Eisen, das verzinkt und pulverbeschichtet ist; der Farbton ist Grafitgrau. Der Querschnitt der runden Pfosten beträgt Ø 3 cm.

Welche Maße hat sie?

Die Unopiù Solaire Anbaupergola gebogen gibt es in zwei Tiefen: B 376 × T 220 cm (PSW2C) und B 376 × T 320 cm (PSW3C).

Ist eine Überdachung im Preis enthalten?

Nein. Zur Unopiù Solaire Anbaupergola gebogen gehört zunächst nur das Gestell. Feste Plane, Federzugrollo und Bambusmatten sind eigene Artikel; das Rollo gibt es für diese Bauform zusätzlich in einer wasserdichten PVC-Ausführung.

Lässt sich die Pergola später verlängern?

Ja. Die Unopiù Solaire Anbaupergola gebogen nimmt Erweiterungsmodule von 186 cm Breite auf, erhältlich für beide Tiefen unter PSW2EC und PSW3EC.

Unopiù Solaire – Lean-to Pergola 376×320 cm | Garden Chair

Unopiu Anbaupergola Solaire 320x376cm in grafitgrau.

Unopiù Solaire – Lean-to Pergola 376x320 cm

1.219,00 € UVP ~~1.648,00 €~~

The Unopiu Solaire lean-to pergola is a masterpiece of Mediterranean design, perfectly combining functionality and aesthetics. Made from high-quality, galvanized iron in elegant graphite grey, the pergola seamlessly integrates into any garden or terrace, transforming outdoor areas into stylish oases of calm. With an impressive width of 376 cm and a depth of 320 cm, the Solaire pergola offers generous shade and creates intimate retreats where you can fully enjoy nature. The post height of 250 cm can be adjusted as desired to perfectly fit your surroundings.

The Unopiu Solaire lean-to pergola made of galvanized iron corresponds in form and material to the typical Mediterranean style. It provides shade, creates intimate retreats outdoors, and not least enhances gardens and terraces.

Thanks to the versatility of this Solaire collection, a "made-to-measure" ambiance can be created that meets all demands and wishes. The curved Unopiu Solaire lean-to pergola can be extended with extension elements of 186 cm.

For roofing, you can choose between a non-adjustable or sliding roof made of fabric covering and bamboo mats.

Available variants

Roofing: without roofing, with fixed waterproof tarpaulin, with spring-loaded roller blind (waterproof tarpaulin), spring-loaded roller blind with awning fabric
Ground fixing plates: without ground fixing plates, with 3 ground fixing plates

The post dimensions are Ø 3cm and height 250cm.
The corresponding height on the wall for the curved lean-to pergolas is 310cm for the 320cm deep model.
Mounting material not included.

Optional accessories
- Extension: 376 x 186 cm,
- waterproof tarpaulin (29% polyester - 71% PVC),
- spring-loaded roller blind with a waterproof white tarpaulin, complete with graphite grey coated fascia,
- fixing plate for a post on the ground complete with 3 expansion anchors 10 mm

Spring-loaded roller blind: The casing for spring-loaded roller blinds is 14 cm high. In addition, a distance of approx. 9 cm from the pergola must be maintained. It is important to maintain this height for PVC tarpaulins so that water can drain off. For acrylic roller blinds, the 9 cm distance can be slightly reduced if space is limited.

Color: graphite grey
Material: galvanized iron
Width: 376cm
Depth: 320cm
Post height: 250cm (can be shortened)

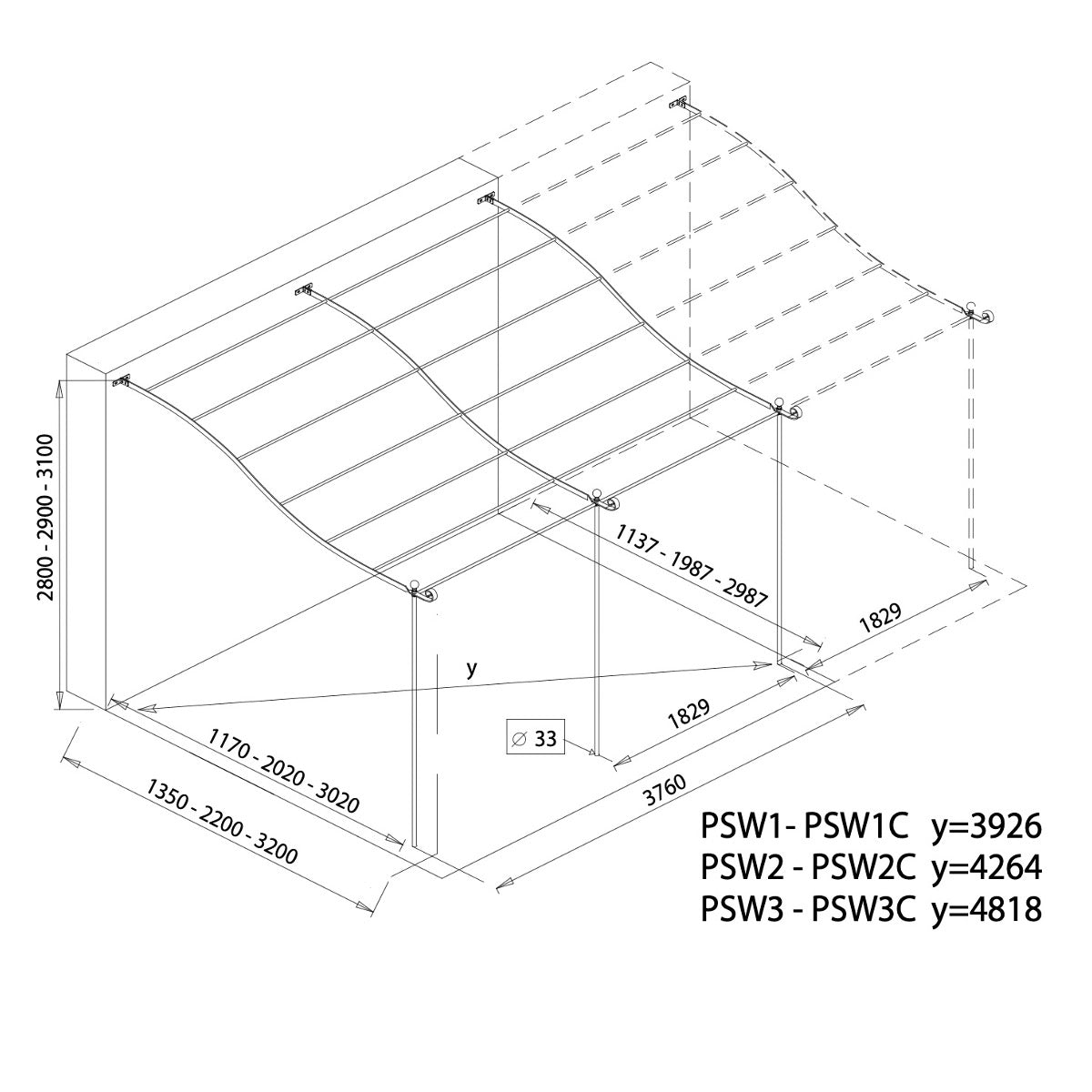

Maße und Details

Maße

Dimensions: B376 xT320 cm
Distance from wall to front post:3.02 m
Height on the wall:310 cm
Front post dimensions: O3.3 cm xH250 cm (post can be shortened)

material: Iron galvanized and powder-coated
Color: graphite gray
Mounting on the wall:Mounting material (screws, dowels...) not included
Attachment to the ground:For optimal support, the manufacturer recommends encasing the posts in concrete; alternatively, depending on the subsurface, ground fixing discs can be used
Optional accessories:
· Floor mounting discs(Fixing disc for a post on the ground complete with 3 expansion dowels 10 mm)
· waterproof tarpaulin(29% Polyester - 71% PVC), complete with fastening elements
· Spring-loaded roller blind with waterproof tarpaulin:(Kit for spring-loaded roller blind with waterproof white tarpaulin (29% polyester with 71% PVC coating), complete with graphite grey coated aluminium cover, spring mechanism and rails for attached pergolas and extensions)
· Spring-loaded roller blind with awning fabric(Kit for spring-loaded roller blind made of 100% natural-coloured acrylic fabric, complete with graphite grey coated aluminium cover, spring mechanism and rails for attached pergolas and extensions.
· Bamboo mats(Set of bamboo mats made from bamboo sticks with variable cutting diameter (from 1 cm to approx. 2 cm), connected with stainless steel wire, complete with fastening material)
· Extensions:eachB186 xT320 cm
Installation information optional spring-loaded roller blind: The box for spring-loaded roller blinds is 14 cm high. In addition, a distance of approx. 9 cm from the pergola must be maintained. It is important to maintain this height with PVC tarpaulins so that the water can drain away. With acrylic roller blinds, the distance of 9 cm can be reduced a little if you do not have much space, as these are not waterproof.

installation
Assembly instructions for the Unopiu extension pergola Solaire
Installation instructions for the Unopiu Solaire spring-loaded roller blind
Unopiu CAD file: 2D for the extension pergola Solaire 320x376cm
